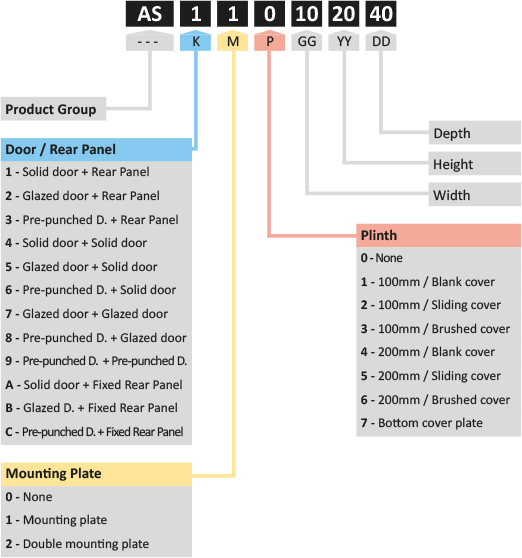

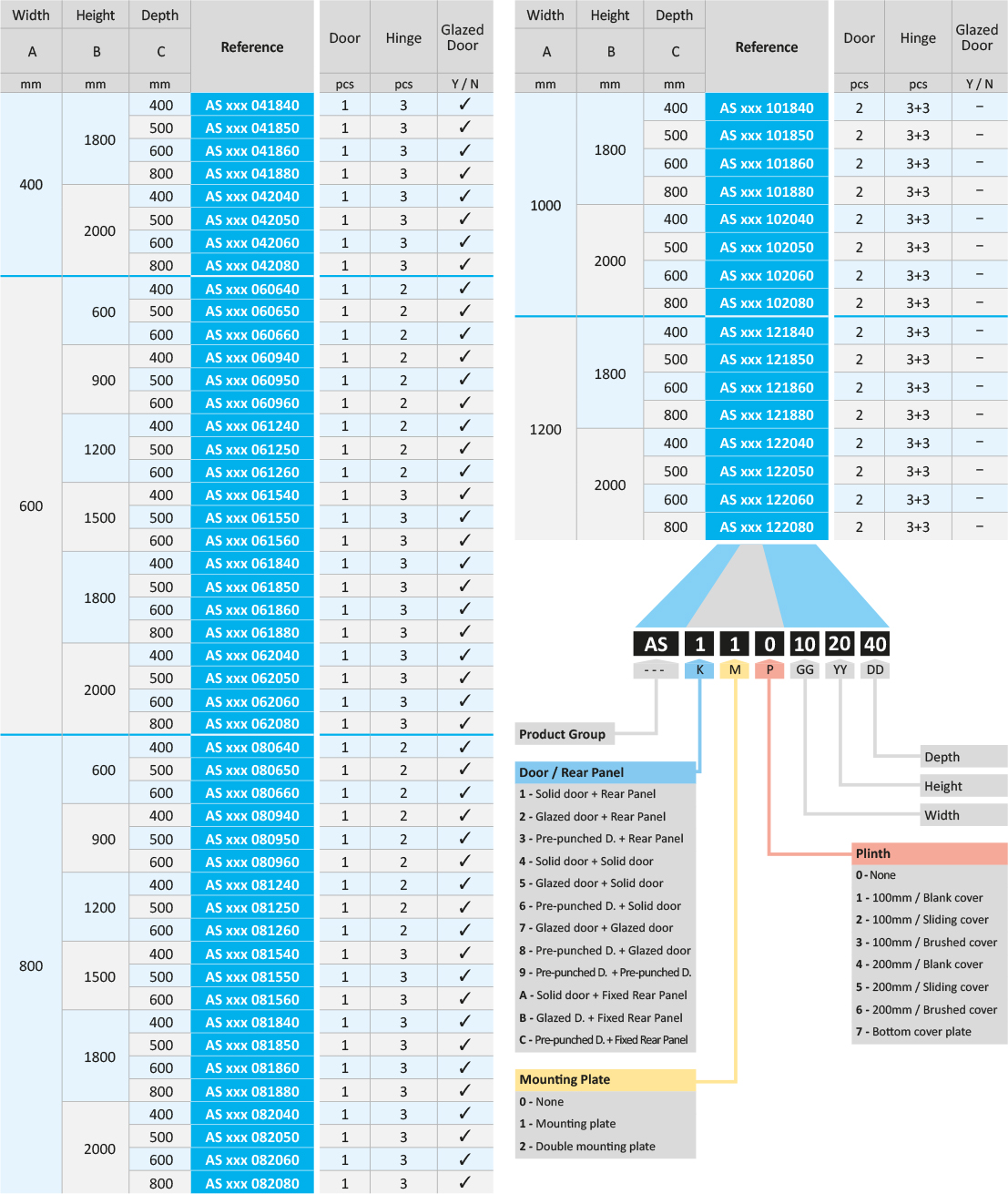

AS INTRODUCTIONMEASUREMENTSIMAGESDOWNLOADCAD Models Characteristics Material Sheet Steel (EN 10130 DC01) Frame : 1.5 mm Panel : 1.5 mm Door : 2 mm Plinth : 2 mm Galvanized Steel (EN 10346 DX51D+Z) Mounting plate : 2 mm Surface Finishing RAL7035w powder coating IP Rating IP55 (TS 3033, EN 60529) Others Welded frame construction Foamed-in door/rear panel PU sealing gasket Swing-handle polyamide lock (3 points locking, 333 key) Door and panel options for rear side Multiple mounting plate possibility The modular construction can be join Removable side panels Plinth and cover options Supply Includes Front and rear frame Door ( Select ≈ K ) Rear panel ( Select ≈ K ) Mounting plate ( Option ≈ M ) Plinth ( Option ≈ P ) Top cover 4/6 pcs side rails Door inside mounting profile On Request Special sizes Special colour Pre-punching Flat pack options Complementary Accessories Side panel Eye bolt Rain canopy Cover plate and profiles Hinged cover plate Short mounting plate Partial mounting plate Infill mounting plate Carriage depth slide and support Partition profile L, U and Z profiles L and Z brackets Busbar & depth profile Ladder busbar profile Joining set Adjustable / pull out perforated shelf Plan pocket Plastic cover plate Earthing cable PRODUCT CATALOGUE DOCUMENTS AS IP55 CAD Models Tempa Pano San. ve Tic. A.S. registered product(No:200301171).
