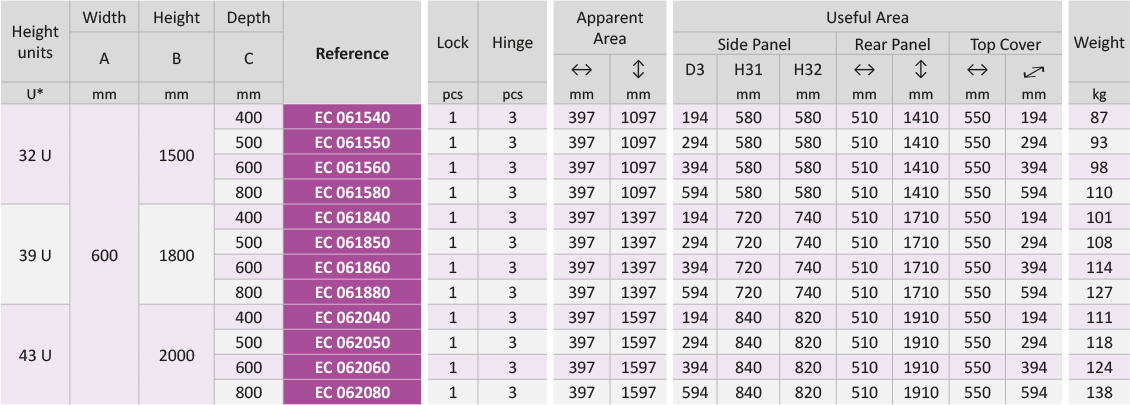

MEASUREMENTS
IMAGES
DOWNLOAD
Characteristics
Material
Sheet Steel (EN 10130 DC01)
- Body: 1.5 mm
- Panel: 1.5 mm
- Glazed door: 2 mm
- Plinth: 2 mm
Galvanized Steel (EN 10346 DX51D+Z)
- 19″ profile: 2 mm
Surface Finishing
- RAL7035w powder coating
IP Rating
- IP55 (TS 3033, EN 60529)
Others
- Swing-handle polyamide lock
- Foamed-in door PU sealing gasket
Supply Includes
- Front and rear frame
- Glazed door and rear panel
- Side panels
- Depth adjustable 19″ profiles
- 4/6 pcs side rails
- Top cover
- Plinth
On Request
- Special sizes
- Special colour
- Pre-punching
- Special Racks
- Special mounting plate
Complementary Accessories
- Castor
- Top protection plate
- Top and bottom partial cover plates
- Power distribution unit
- 19″ pull out perforated shelf
- Cable clamp profile
- Side rail
- Mounting plate
- Telescopic slide
- Locks
- Earthing cable
- 19″ equipment shelf
- Swing frame
- Patch panel and 1U fan unit
- Cable organizer
