EKO Series

Wall Type Enclosures

EKO

INTRODUCTION

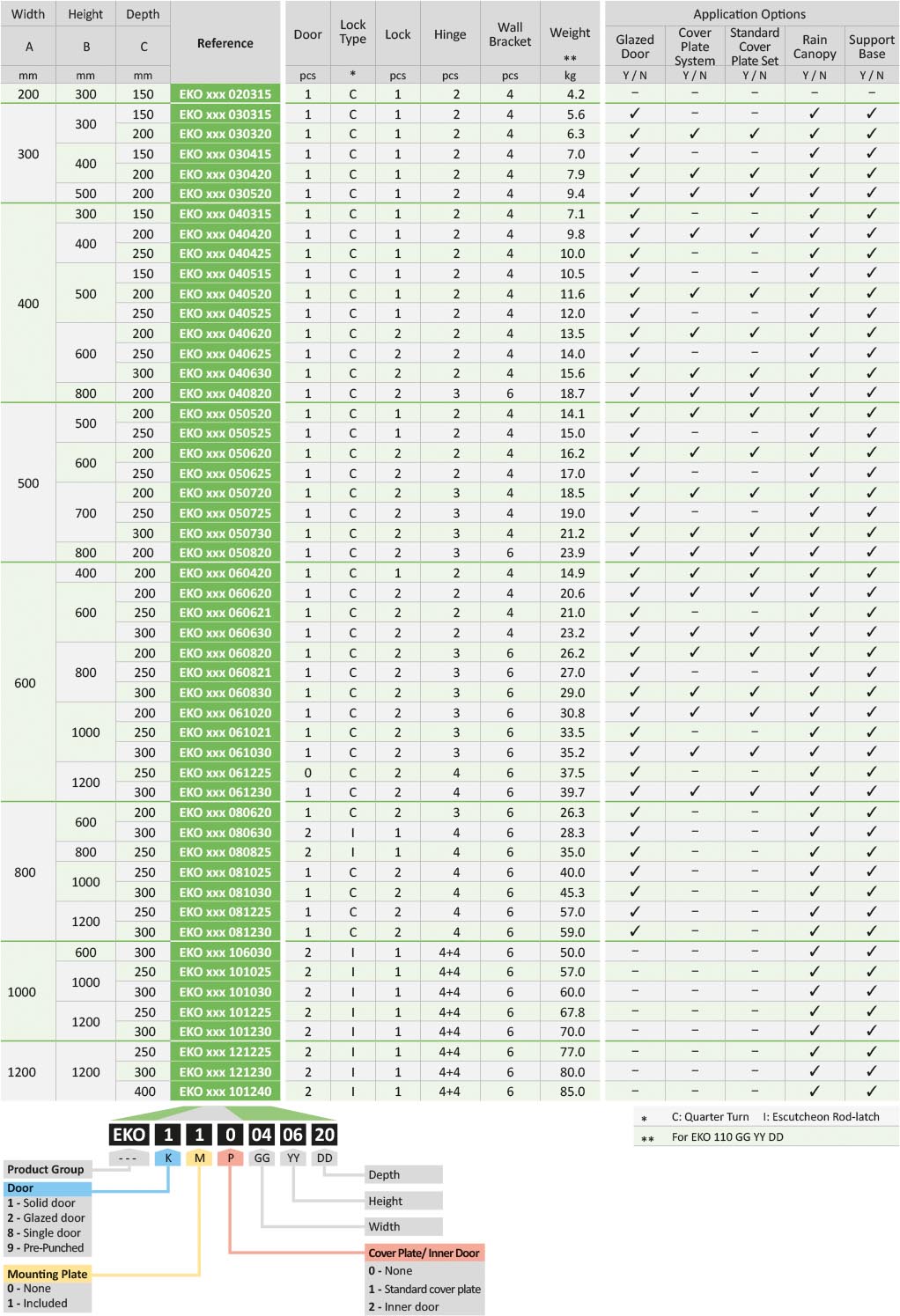

MEASUREMENTS

IMAGES

DOWNLOAD

CAD Models

Characteristics
Material

Sheet Steel (EN 10130 DC01)

  • Body: 1.2/1.5 mm
  • Door: 1.2/1.5 mm

Galvanized Steel (EN 10346 DX51D+Z)

  • Mounting plate: 2 mm
Surface Finishing
  • RAL7035w powder coating
IP Rating

Single door enclosures

  • IP65 (TS 3033, EN 60529)

Double door enclosures

  • IP55 (TS 3033, EN 60529)
Others
  • Fully welded construction
  • Solid / glazed door
  • Foamed-in door PU sealing gasket
  • 155° concealed hinges
  • 5mm Double-bit insert polyamide lock
  • Top and bottom gland plates
  • One piece PE gasket for gland plate
On Request
  • Special sizes
  • Special colour
  • Pre-punching
Supply Includes
  • Body
  • Door (Select ≈ K )
  • Mounting plate (Option ≈ M )
  • Cover plate set (Option ≈ P )
  • Hinged inner door (Option ≈ P )
  • 2 pcs gland plates with gasket
  • 4/6 pcs wall brackets
Complementary Accessories
  • Rain canopy
  • Support base
  • DIN rail
  • Cover plate and profiles
  • Standoff
  • Door inside mounting profile
  • Door stay
  • Pole fitting set
  • Plastic cover plate
  • Special locks and keys
  • Earthing cable

PRODUCT CATALOGUE
DOCUMENTS



Tempa Pano San. ve Tic. A.S. registered product(No:200301171).
