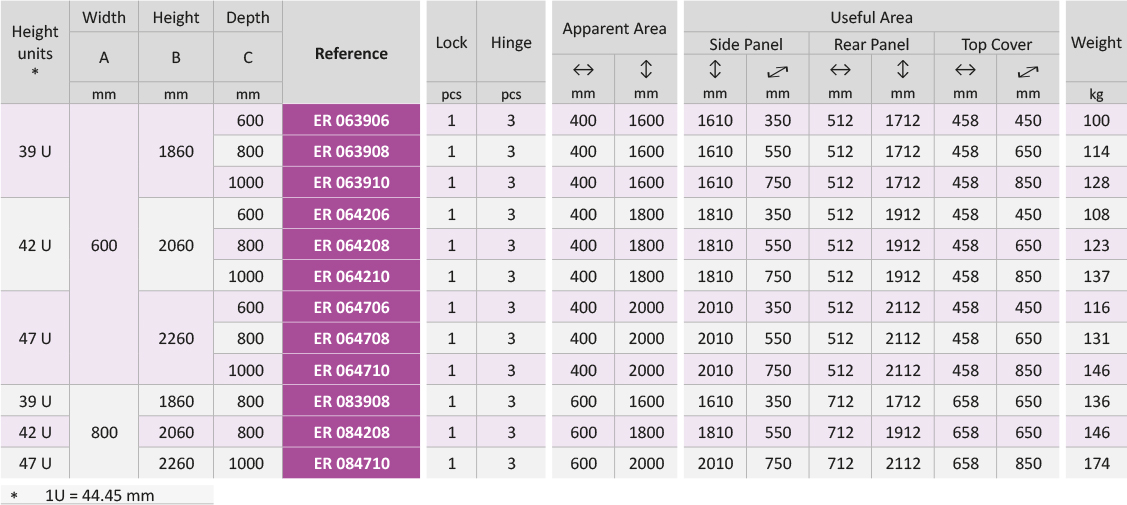

MEASUREMENTS
IMAGES
DOWNLOAD
Characteristics
Material
Sheet Steel (EN 10130 DC01)
- Frame: 1.5 mm
- Door: 1.2 mm
- Plinth: 1.5 mm
Galvanized Steel (EN 10346 DX51D+Z)
- 19″ profile: 2 mm
Surface Finishing
- RAL7035w powder coating
Others
- Ventilation hood
- 150° opening front door
- Swing-handle polyamide lock (3 points locking, 333 key)
- Glazed or perforated front/rear door
- Removable perforated side panels
- Depth adjustable 19″ upright profiles
- Cover plate with grilled fan
- Cable entry cover plate
Supply Includes
- Front and rear frame
- Glazed door
- Rear and side panels
- Plinth
- Ventilation hood
- 4 pcs 19″ upright profile
On Request
- Special sizes
- Special colour
- Pre-punching
Complementary Accessories
- Levelling feet
- Castor
- Top protection plate
- Top and bottom partial cover plates
- Power distribution unit
- 19″ pull out perforated shelf
- Cable clamp profile
- Side rail
- Mounting plate
- Telescopic slide
- Locks
- Earthing cable
- 19″ equipment shelf
- Swing frame
- Patch panel and 1U fan unit
- Cable organizer
