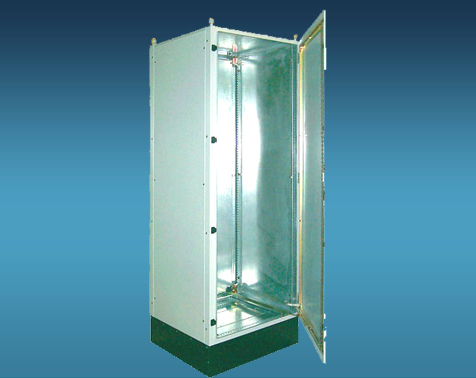

BSE
INTRODUCTION
MEASUREMENTS
IMAGES
DOWNLOAD
Characteristics
Material
Galvanized Steel (EN 10346 DX51D+Z)
- Frame: 1.5 mm
- Panel: 1.5 mm
- Door: 2 mm
- Plinth: 2 mm
- Mounting plate: 2 mm
Surface Finishing
- RAL7035w powder coated outer surface
IP Rating
- IP55 (TS 3033, EN 60529)
Others
- EMC gasketed front door and rear panel
- EMC gasketed side panels, top cover and plinth
- Conductive interior surface
- Swing-handle polyamide lock (4 points locking, 333 key)
- Concealed hinge
- Multiple mounting plate possibility
Supply Includes
- Front and rear frame
- Door
- Rear panel
- Mounting plate
- Plinth
- Top cover
- Side panels
- 4/6 pcs side rails
- Door inside mounting profile
On Request
- Special sizes
- Special colour
- Pre-punching
Complementary Accessories
- Eye bolt
- Rain canopy
- Short mounting plate
- Partial mounting plate
- Carriage depth slide and support
- Partition profile
- L, U and Z profiles
- L and Z brackets
- Busbar & depth profile
- Ladder busbar profile
- Plan pocket
- Earthing cable
