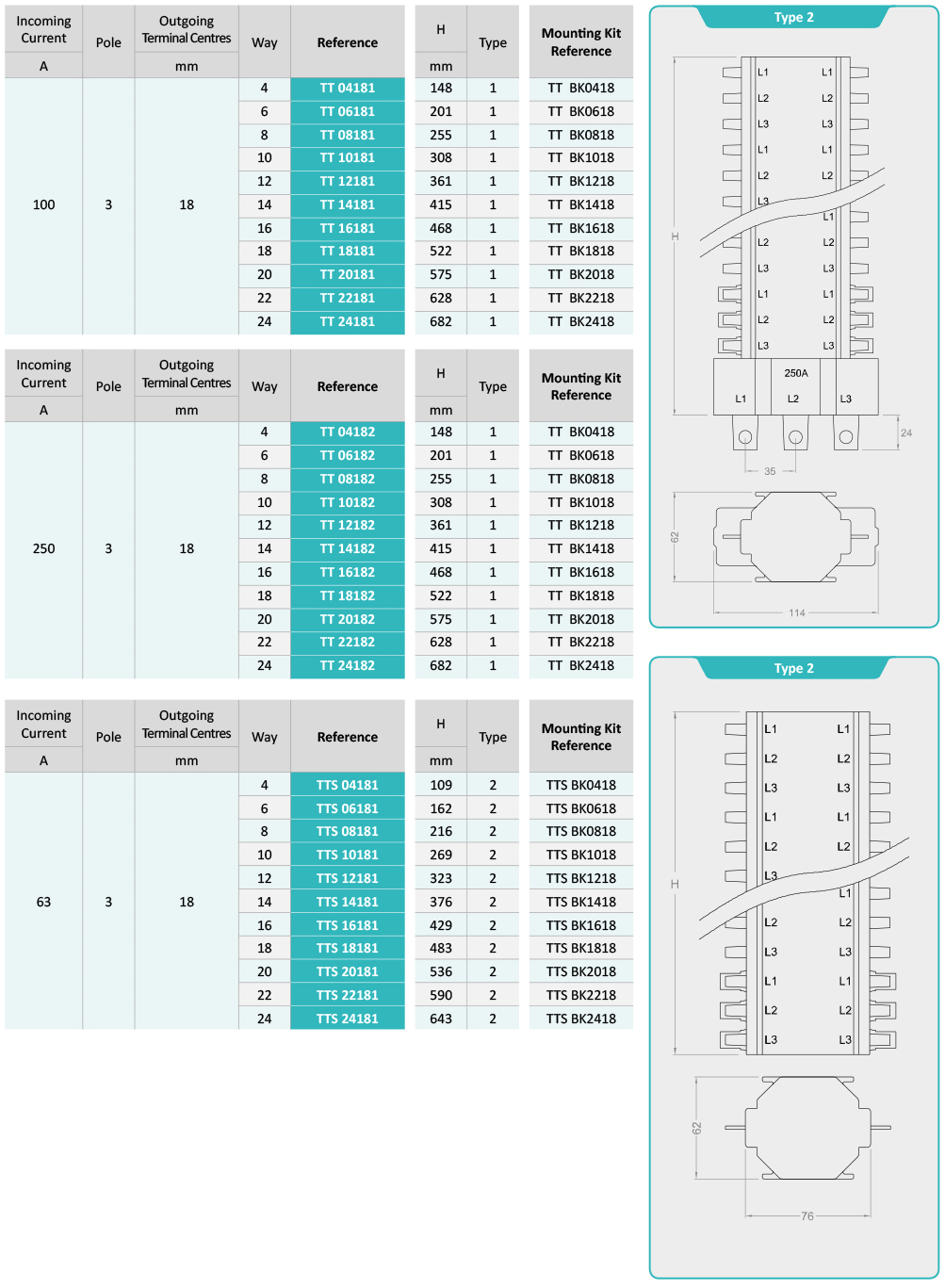

MEASUREMENTS
IMAGES
DOWNLOAD
- Fully insulated 250A 415VAC busbar system
- Busbar short circuit withstand is ICMET certified 30kA for 1 second conditional
- Suitable for BSEN / EN / IEC 60439-1 form 1-4 switchboard construction
- 18mm outgoing terminal centres for most major manufacturers standard (2A to 63A) MCB’s
- Incoming terminals are designed to accept 250A incoming interconnectors at 35 mm terminal centres
- One piece copper construction
- Maintenance free
- Colour coding for all connections as standard
- Shroud for spare / unused outgoing terminals
- On request tin plated
